608036-1

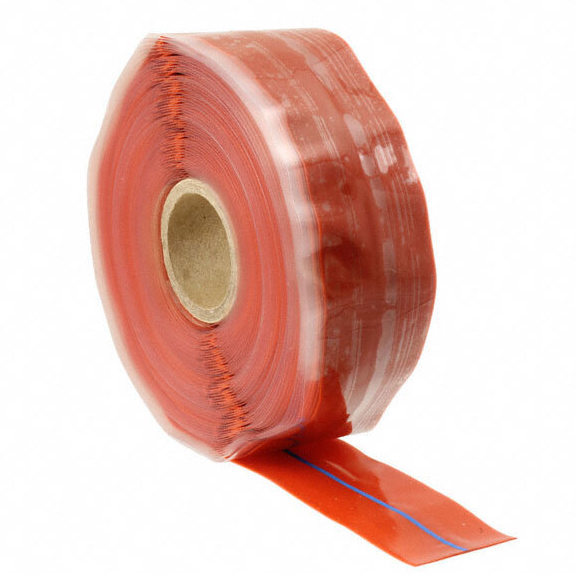

Silicone Fusion Tape Red

608036-1
Availability

orderable but prices may vary

Condition
new
Certificate Type
C of C
Product information


TE Connectivity Amp Silicone Fusion Tape, 1 Inch Inch X 36'

608036-1 TE AMP SILICONE FUSION TAPE, 1"X 36' Ideal for wrapping cable splices and terminations. A narrow strip of woven or processed material less than twelve inches (304.8 mm) in width.

Self-adhering and self-curing for permanent insulation
Resists moisture and chemical exposure
Highly flexible for wrapping irregular surfaces
Green guide line ensures proper overlap for optimal insulation
Prevents undesirable current flow between conductors

Color: Red basic with green symbol
Nominal Width: 1.000 inches
Nominal Length: 432.0 inches
Nominal Overall Thickness: 0.0400 inches
Temperature Rating: -130.0°F minimum to 500.0°F maximum
Voltage Rating: 300 volts
Material: Rubber overall
Material Classification: MIL-I-46852, Type II
Cut Type and Quantity: 1 single

Meets or exceeds MIL-I-46852, Type II

Dimensions (L x W x H): 7.50 x 5.50 x 1.13 Inch
Details
Country of Origin US
Expiration months 24
Certificate Type C of C
Condition new
KN8 number 39191080
Weight 0.3 kg
