Directional Gyro 4000C-17

Close Menu

Availability

Ready to ship today

Condition

overhauled

Certificate Type

EASA Form 1

Close Menu

Product information

Directional Gyro 1U262-042-3 Range 4.5 to 5.2 IN. HG Rating Vacuum Model 4000C-17 TSO C5c TYP 1
Height: 3.25" Width: 3.38" Depth: 6.68" (max) Markings: Matte white Finish: Dull black
Environmental Characteristics Temperature: -30° to 50° C Vibration: CPS: 5 to 50 Maximum Double Amplitude: 0.020 in. Maximum Acceleration: 1.5 G's Humidity: 0% to 95% at 32° C Altitude: 0 to 40,000 ft. Autopilot Model: King

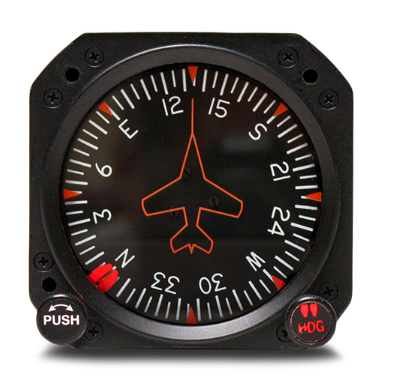

The 4000C/D is an air-driven directional gyro with A.C. autopilot pickoffs. Left turns produce clockwise dial rotation and right turns produce counter-clockwise rotation. Two knobs control the gyro. The left knob is used to cage the unit, and the right knob is used to select the instrument heading. To change course, the right selector knob is pressed and turned to disengage the dial shaft and set the pointer to a new heading. Releasing the selector knob re-engages the pointer with the dial shaft. As the aircraft turns onto a new course, the pointer returns to its original position. The on-course position of the pointer is always at the top of the azimuth circle (0° on the dial with the aircraft headed north).

Close Menu

Details

Country of Origin	US
Certificate Type	EASA Form 1
Condition	overhauled
KN8 number	90141000
Volume Weight	1.044 kg
Weight	1.26 kg
