MS21071L08

Nutplate

MS21071L08
Disponibilità

Pronto per la spedizione di oggi

Condizione
new
Tipo di certificato
C of C
Informazione prodotto

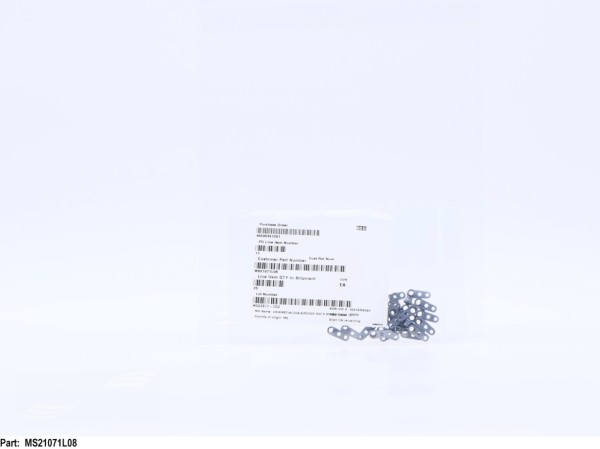

MS21071L08 Self-Locking Single Lug Nut Plate, #8, 32 TPI, Steel, Cadmium-Plated

Width: 0.235 to 0.297 in
Finish: Cadmium-Plated
Material: Steel
Lubrication: Dry Film
Mounting Hole Center-to-Center: 0.217 to 0.221 in
Mounting Hole Diameter: 0.098 to 0.103 in
Mounting Type: Straight Hole
Number of Holes: 2
Nut Dimensions: 0.716 in L x 0.25 in H
Temperature Rating: 450 deg F
Thickness: 0.047 in
Thread Class: 3B
Thread Direction: Right Hand
Thread Per Inch: 32
Thread Size: #8
Thread Type: UNJC
FAA-STD Approved
QQ-P-416 Type 2 Class 2
Dettagli
Paese di origine US
Tipo di certificato C of C
Condizione new
Numero KN8 73181692
Peso del volume 0.001728 kg
Peso 0.002 kg
